This is the latest and probably the last revision of this bike.
Originally it was constructed as a Cross Bike for fire roads; and a chance to show off some Campagnolo Nuovo Gran Sport (GS) components. For the longest while I did not identify the maker until I could be sure. I am now sure it is an Italian Olmo Mexico like this one Vintage Olmo Frame . This frame appears to have the same combination of lugs and lug cut outs, seat clamp seat stay ends and fork, so there is enough similarity to ID my bike; the only difference is the dropouts. My bike has Campagnolo short dropouts will the Mexico has Gipiemme dropouts. Either that it could be a Competition sans any identifying marks identifying it as an Olmo.
When I first put this bike together I was going for a Gran Sport grouppo but I was foiled by not being able to find Grand Sport brake calipers with standard length arms, so I ended up with Triomphe levers and calipers with some generic gum looking hoods, until I could find the appropriate Gran Sport brakes.I first bid on a set of GS levers, which I got for a very good price. I then bought some "OEM" gum brake hoods. The hoods are likely replicas, but they look so good, no one has found a way to tell the difference. Then bought a set of Campy standard NOS GS arms from Boulder Bicycle/aka Rene Herse and used them to replace the arms from the Triomphe calipers I already had.(Boulder Bicycle is a great resource BTW). But the OCD in me would not allow this to continue, so I found some of under the cap slotted washers and flat nuts that came on the GS and Nuovo Record brake calipers (also from Bouolder Bicycle). This process has been very frustrating process. Originally I bought a set of GS calipers but the arms were too short. I sold these calipers and bought the set of Triomphe I had been using. Had I just waited a little longer, I could have simply switched the arms on the original GS calipers, or bought a NOS set of GS standard brakes and levers (with hoods) that Boulder Bicycle recently added to their store for $200; either way I would have spent less and done a lot less piecing together, but as they say hindsight is always 20:20. I finally found some OEM dome nuts and they do look good.
So here it is;
|Front GS Bake caliper with the OEM shiny dome cap|
|The GS levers with Globe World logo gum hoods.|
|A GS rear derailleur with a Regina Corsa 14-27 freewheel and stainless rear housing.|

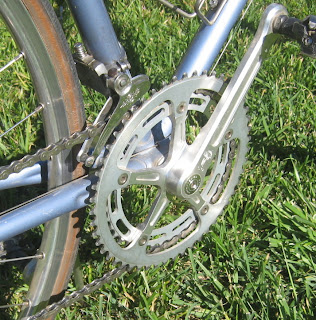

|A GS crankset; the large chainring is an Ofmega 51t and the arms have been filed down to meet with the crank arms.|

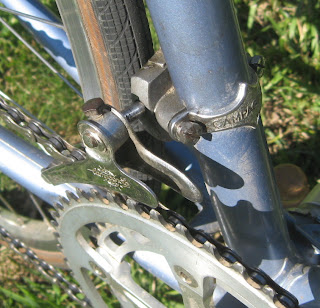

|GS rod actuated front derailleur.|

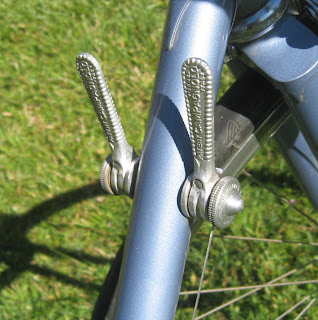

|The GS downtube brase- on levers were the same as Nuovo Record, however the clamp on were sometimes different. I modified these with a short threaded stud so I could use the GS clamp-on tensioners.|

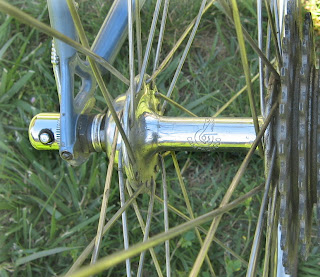

|I put together this wheelset with Nuovo Tipo hubs (used with most Gran Sport equipped bikes) and some Velo Orange PBP 700c box section rims.|
and of course no bike of this kind would be complete without a Selle Italia Turbo saddle.
I still have a Mavic Shimano 105 wheelset with some Kenda 32mm cross tires, and this is the only 700c off road bike I have; so simple wheel change (and a little rear derailleur tweaking) allows me to jump back and forth between road and off-road.
